Elliptic Tokamak

In this tutorial GVEC is used to compute and visualize the equilibrium of an elliptic tokamak.

The notebook covers the following steps:

1. Explaining the GVEC input parameters

2. Running GVEC from the notebook

3. Loading the solution for post-processing

4. Evaluating equilibrium quantities and visualize them

5. Running pygvec on the command line

# set the number of OpenMP threads before importing gvec
import os

os.environ["OMP_NUM_THREADS"] = "2"

import gvec

Setting up a GVEC run

In this example, we first define the parameters in a dictionary.

The full list of parameters is found here(🌐).

params = {}
# Project name is used in output files
params["ProjectName"] = "GVEC_elliptok"

Problem setup

For a fixed-boundary MHD equilibrium problem, one needs to specify:

• the physics parameters and

• boundary shape.

In addition, we will also have to provide some numerical parameters for the solver.

Physics parameters

The required physics parameters for a GVEC run are:

• The scale of the magnetic field strength is set by the total enclosed torodial flux \(\Phi_\text{edge}\).

• Rotational transform \(\iota(s)\) and pressure \(p(s)\) profiles. These can be specified in different ways. For example here we define,

  • rotational transform (iota) by providing the coefficients (coefs) of a polynomial in \(s\) and

  • pressure (pres) by specifying the values (vals) at given \(s\) positions (rho2), which are then used to construct a continuous pressure profile using interpolation by a cubic spline.

    • Additionally, the profile can be scaled by a factor scale.

Note that these profiles are always defined in terms of the normalized toroidal flux: \(s=\Phi/\Phi_\text{edge}=\rho^2\)

# total enclosed toroidal flux (scales magnetic field stength)
params["PhiEdge"] = 1.0
# rotational transform profile
params["iota"] = {
    "type": "polynomial",  # c_0 + c_1*s + c_2*s^2 ..., s=rho^2
    "coefs": [0.625, 0.35],  # [c_0,c_1]
}
# pressure profile
params["pres"] = {
    "type": "interpolation",
    # s=rho^2 positions
    "rho2": [0.0, 0.25, 0.5, 0.75, 1.0],
    # pressure values at rho^2 positions
    "vals": [1.0, 0.75, 0.5, 0.25, 0.0],
    # scaling factor
    "scale": 1000.0,
}

Boundary shape

We first specify the geometry of the equilibrium. For the boundary we need:

• The choice of \(h\)-map.

  For this case we use cylindrical coordinates, so we choose which_hmap=1, so that the mapping to Cartesian coordinates is,

  \[(x,y,z) \mapsto (R\cos(\zeta), -R\sin(\zeta), Z), \qquad \text{with}\qquad R = X^1,\; Z = X^2.\]

• The coefficients corresponding to the \((m,n)\) toroidal and poloidal cosine/sine Fourier modes of \(X^1\) and \(X^2\),

  \[\begin{align*} X^1(\vartheta,\zeta) &= X^1_{0,0} + X^1_{1,0} \cos(\vartheta) + \dots + X^1_{m,n} \cos(m\vartheta - n N_{FP} \zeta), \\ X^2(\vartheta,\zeta) &= \phantom{X^1_{0,0} + {}} X^2_{1,0} \sin(\vartheta) + \dots + X^2_{m,n} \sin(m\vartheta - n N_{FP} \zeta)\,. \end{align*}\]

  • Note that we only specify the \(m\le1\), \(n=0\) modes in this case.

  • The number of toroidal field periods \(N_{FP}\), which in this case is nfp=1.

# set hmap to cylinder coordindates: X1=R,X2=Z,zeta=-phi
params["which_hmap"] = 1
# number of field periods
params["nfp"] = 1
# boundary modes
params["X1_b_cos"] = {
    (0, 0): 5.0,
    (1, 0): 0.9,
}
params["X2_b_sin"] = {(1, 0): 1.1}

Numerical setup

Finally, we must specify some parameters for the numerics.

• The initial guess for the magnetic axis given as the \((m,n)\) Fourier modes for \(X^1\) and \(X^2\) at \(\rho=0\).

• The Fourier resolution in the toroidal \(m\) and poloidal \(n\) directions for the solution parameters \(X^1\), \(X^2\) and \(\lambda\) (X1_mn_max,X2_mn_max,LA_mn_max).

  • Note that this can be larger or smaller than maximum mode number of the boundary. If it is smaller it will cut off the boundary modes at the specified resolution.

• Discretization parameters for the radial B-splines which are

  • the number of radial elements sgrid_nElems for all solution quantities. NOTE using \(\ge2\) elements is recommended;

  • the degree of the B-splines, separately for \(X^1,X^2\) (X1X2_deg) and \(\lambda\) (LA_deg).

  The number of degrees of freedom for a B-spline is nElems + deg. Note that one can change the grid spacing, but here we leave it as the default, which is a uniform spacing in \(\rho\).

• Minimization parameters

  • Maximum number of iterations (totalIter).

  • The tolerance for the minimizer, used as a stopping criterion. The minimization is stopped if \(\max(\|F_{X^1}\|_2,\|F_{X^2}\|_2,\|F_{\lambda}\|_2)\leq \) minimize_tol, where the \(F\) are the forces in the respective solution variable.

# initial guess for magnetic axis
params["X1_a_cos"] = {(0, 0): 5.0}

# maximum Fourier mode numbers for X1,X2,LA [m:poloidal,n:toroidal]
params["X1_mn_max"] = [3, 0]
params["X2_mn_max"] = [3, 0]
params["LA_mn_max"] = [3, 0]

# radial resolution parameters
# number of radial B-spline elements
params["sgrid_nElems"] = 2
# degree of B-splines for X1 and X2
params["X1X2_deg"] = 5
# degree of B-splines for LA
params["LA_deg"] = 5

# minimizer parameters
# maximum number of iterations
params["totalIter"] = 10000
# stopping tolerance in the energy minimization
params["minimize_tol"] = 1e-6

---

Running GVEC

We now have all the parameters in a dictionary params, which we can pass to gvec.run(🌐) to compute the MHD equilibrium.

The output is stored in the run object.

run = gvec.run(params, runpath="run_tokamak")

GVEC - completed 0/2 stages: |>|.|
GVEC - completed 1/2 stages: |=|>|
GVEC finished after   1.0 seconds  using 2479 iterations (totalIter = 10000)  with |force| = 9.97e-07 (minimize_tol = 1.00e-06)

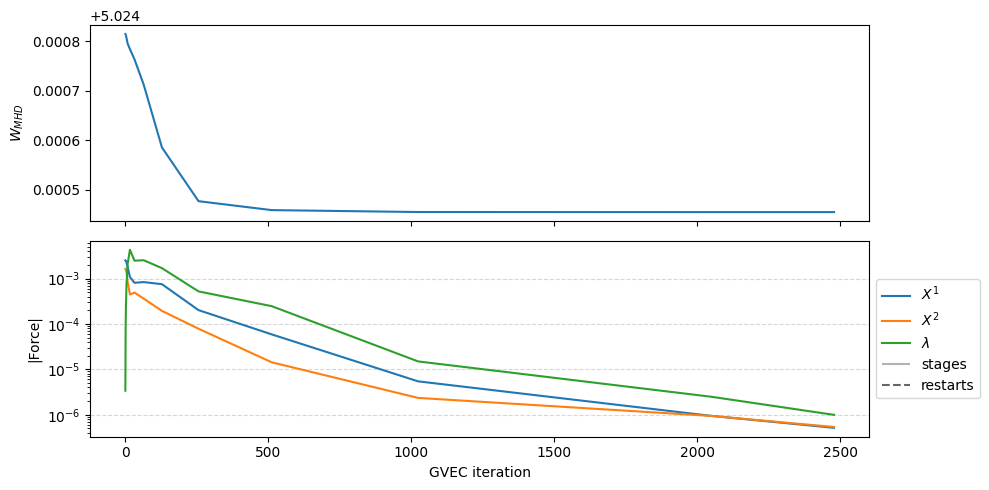

We can extract and plot the history of the GVEC run. We see the change in total MHD energy and the norm of the forces, which are computed as \(\|F\|_2\) for each unknown \(X^1,X^2,\lambda\).

fig = run.plot_diagnostics_minimization()

---

Post-processing & Visualization

The central object for evaluating a GVEC equilibrium is the gvec.State(🌐) class.

One can load the final state file from the object run that was the output of gvec.run(🌐). Alternatively, if the run was done outside this notebook, we can find the state from a runpath using gvec.find_state(runpath).

state = run.state

Visualize profiles

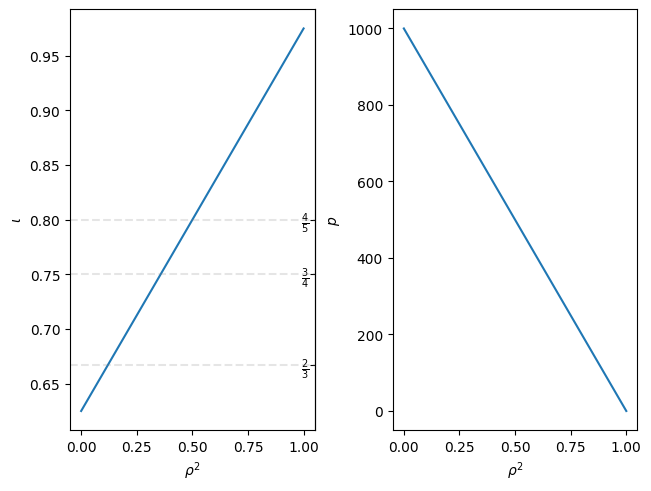

Now, lets visualize the 1D profiles (input quantities) over the radial coordinate \(\rho^2\), which equals the normalized to the toroidal flux \(\Phi / \Phi_\text{edge}\).

We use the convenience plotting function plot_radial_profile(🌐), which computes the requested variables from the state.

fig, axs = state.plot_radial_profile(
    quantities=["iota", "p"],
    xaxis="rho_squared",
)

Visualize poloidal plane

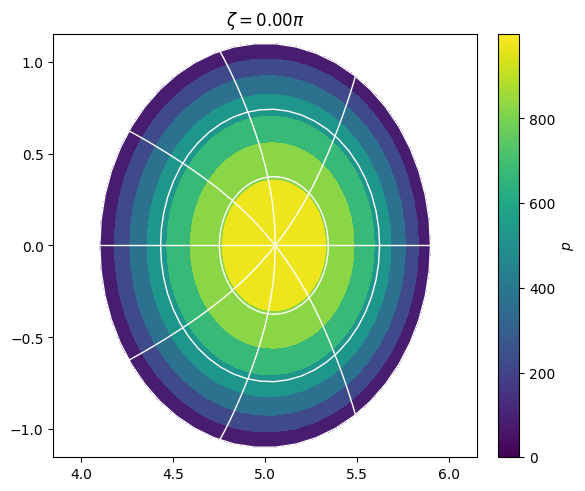

As we evaluated on a \(\rho,\vartheta\) grid, we can visualize the poloidal plane (\(\zeta=0\)). Note that contours of pressure, \(\rho\) and of the straight-field line angle \(\theta^* =\theta +\lambda(\theta,\zeta)\) are shown.

A convenience plotting function plot_poloidal_plane(🌐) is used here.

fig, ax = state.plot_poloidal_plane(
    quantity="p", zeta=0.0, sfl="pest"
)

More visualization and post-processing functions are found in gvec.plotting and are described in tutorials Postprocessing(🌐) and Plotting(🌐).

---

pygvec command line interface

We can also work only on the command line with a parameter file. Lets write the parameters from above to a .toml file using

gvec.util.write_parameters(params, "elliptok_parameters.toml")

and then run pygvec on the command line (with the virtual environment activated) as

mkdir run_02
cp elliptok_parameters.toml run_02/.
cd run_02
export OMP_NUM_THREADS=2
pygvec run elliptok_parameters.toml
cd ..
ls run_02/.

You should then be able to load the state from the runpath as done above:

state = gvec.find_state("run_02")
